AnchorBar™

Green Line.jpg



The Steel Dog® AnchorBar™ is a versatile solution for attaching formwork to existing structures.

Use the fastener or mechanical anchor of your choice (up to 5/8” diameter) to connect formwork to existing structures, whether wood, concrete, or steel. Or, weld the body of the AnchorBar to steel structures (sheet piling, H-beams) for an inexpensive weld-on tie point with swivel coil loop.



2D Graphic.jpg

APPLICATIONS:

  • Brace ties for edge forms on mass pours

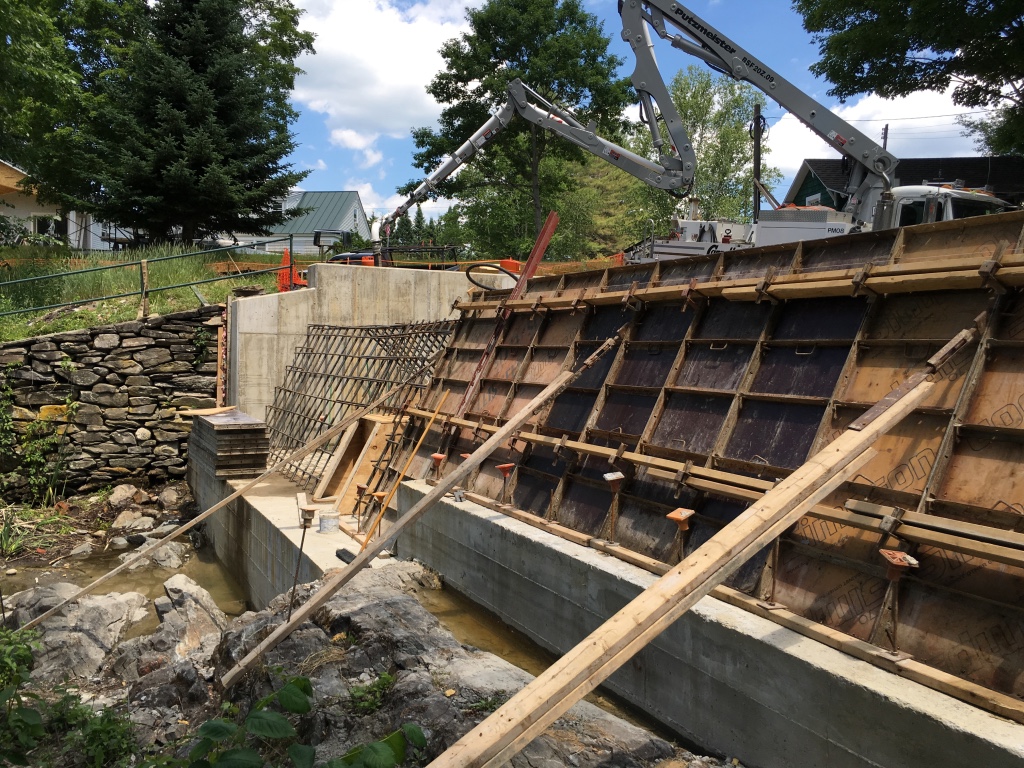

  • One-sided walls against sheet piling

  • One-sided walls against irregular surfaces

  • Many other uses

USE WITH THESE FASTENERS:

Simpson Titen HD® Screw Anchor
Powers Wedge-Bolt®
Drop-in Anchor (with NC or coil thread rod and nut)
Powers Power-Stud®
Any fastener up to 5/8” diameter

MATERIAL:

Body: low carbon steel
Coil loop: medium carbon steel

FINISH:

Plain. Other finishes available: contact factory.

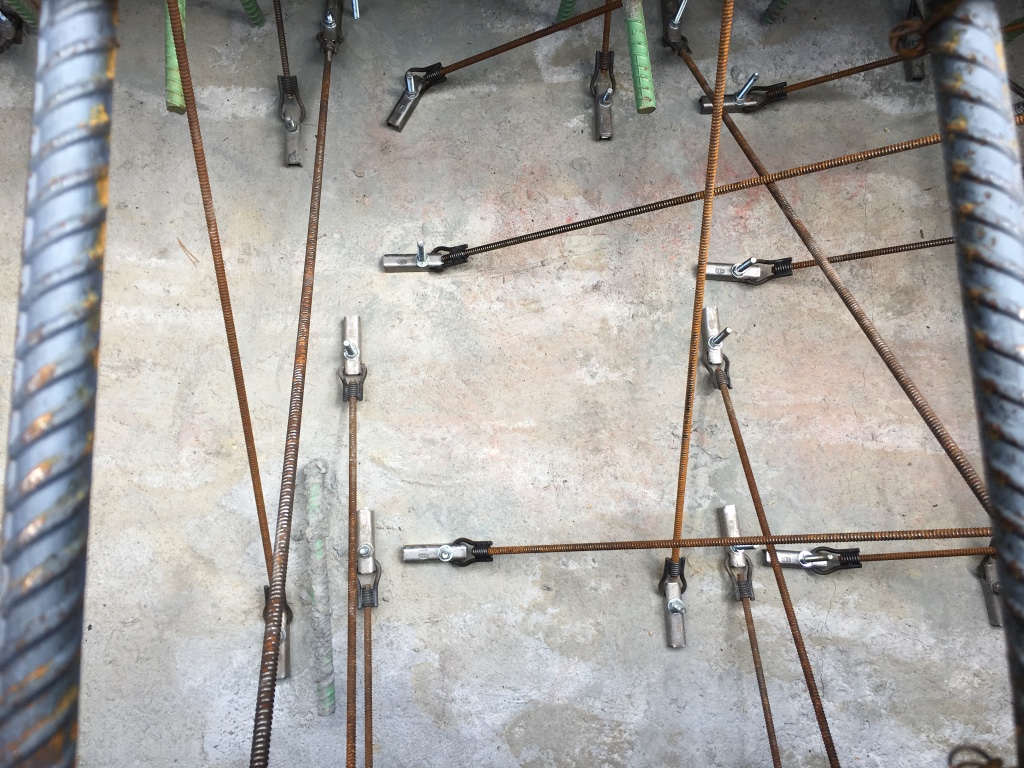

Internal Bracing


Ordering Info


Order Info.jpg
