One-Sided Forming

Lightbulb Coil Loop Tie

Green Line.jpg

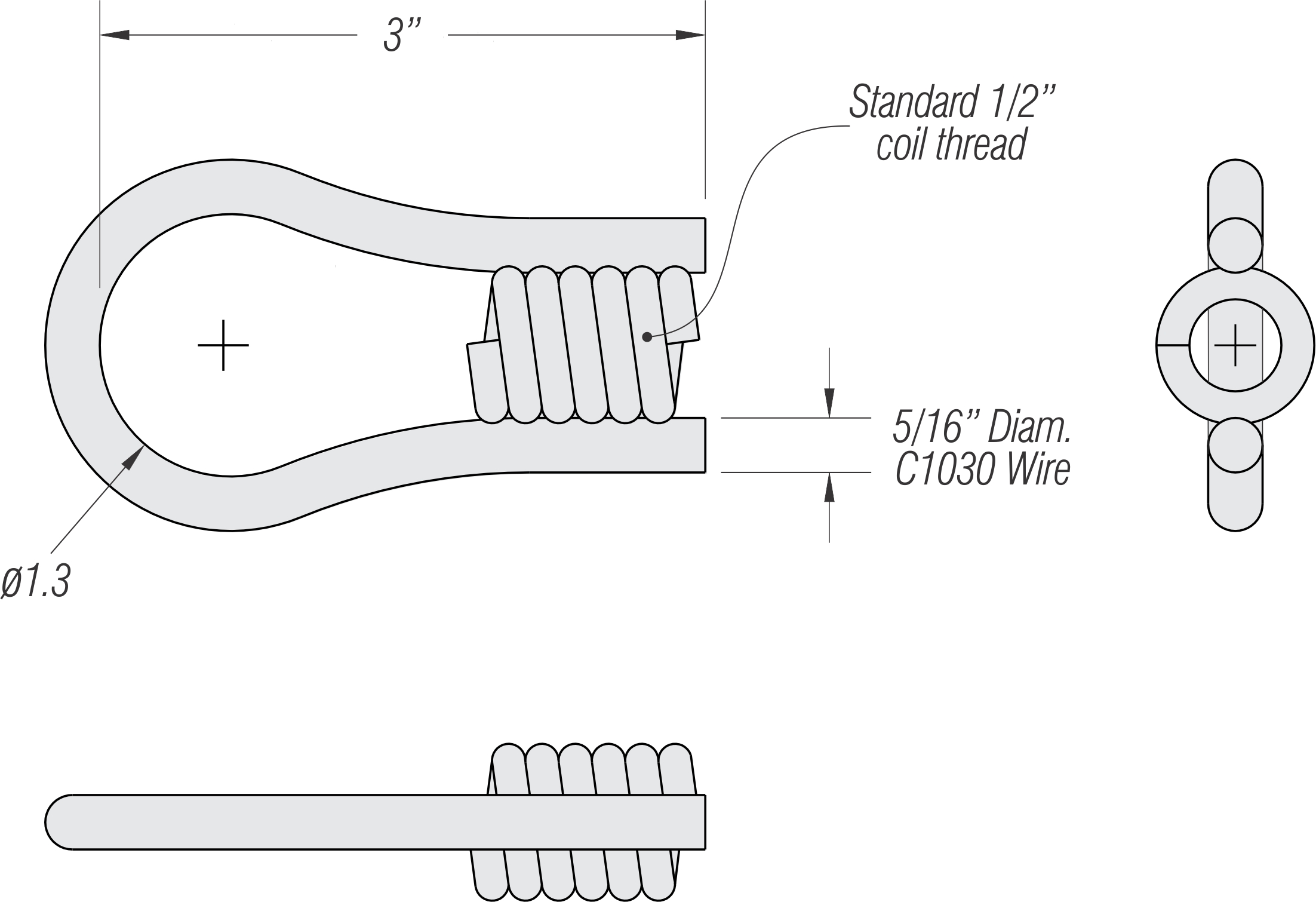

The Steel Dog® Lightbulb Coil Loop is designed as a universal means of attaching to rebar and steel studs. The loop features a bulb shape which is large enough to accept up to a #9 rebar, or easily slip over a the head of a Nelson Stud.


2D Graphics LB.jpg

FEATURES:

  • Standard 1/2” coil thread to connect to any forming system

  • Large coil loop

  • Available in stainless steel, electroplated zinc, or hot dipped galvanized

MATERIAL:

Carbon steel

MAXIMUM SAFE WORKING LOAD:

4500lbs safe working load

APPLICATIONS:

  • Perpendicular attachment to rebar

  • Perpendicular attachment to Nelson Studs

  • One-sided or blind-sided walls

INSTALLATION:

Slip the coil loop around the object you’d like to attach to, thread 1/2” coil rod completely into coil (min. 1/2” beyond the back of coil). Attach the other end of coil rod to formwork.
