Resi-Coil Tie™

Green Line.jpg




The Steel Dog Resi-Coil™ Tie is a multipurpose Transition Tie for 1-1/8" plywood concrete forms. With a Resi-Tie electronically welded to a ½”coil tie end, the Resi-Coil™ Tie gives the user the versatility of threaded coil rod for one-sided forming, long ties, and other purposes, while still using the quickest, handset modular form system.


Sketchup pic.jpg

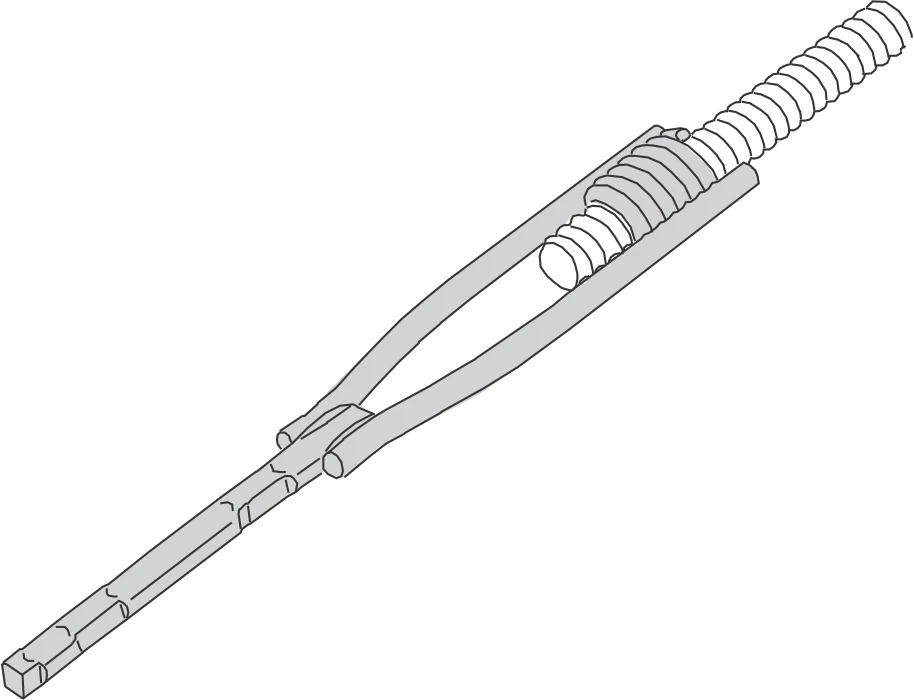

  • Standard Resi Tie on one end—coil rod adapter on the other

  • Opens up the possibilities of industry-standard coil rod hardware to the 1-1/8” form user

  • Low cost solution for one-sided forming and adjustable-length ties

  • Welded to rigorous standards using computer-controlled equipment—each Resi Coil™Tie is as strong as a standard Resi Tie


MAXIMUM SAFE WORKING LOAD:

2500 Lbs. (Based on approximately 2-to-1 safety factor).

APPLICATIONS:

  • Battered walls

  • Pilasters

  • Machine bases

  • Unusual forming situations

  • Emergency custom ties


Applications

Two RC-6.jpg

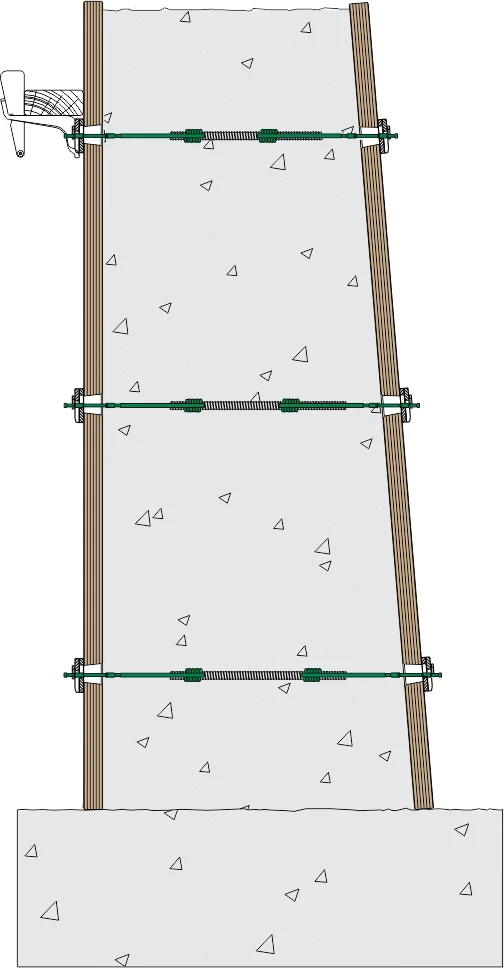

ADJUSTABLE-LENGTH TIES

Make any-length ties at the job site

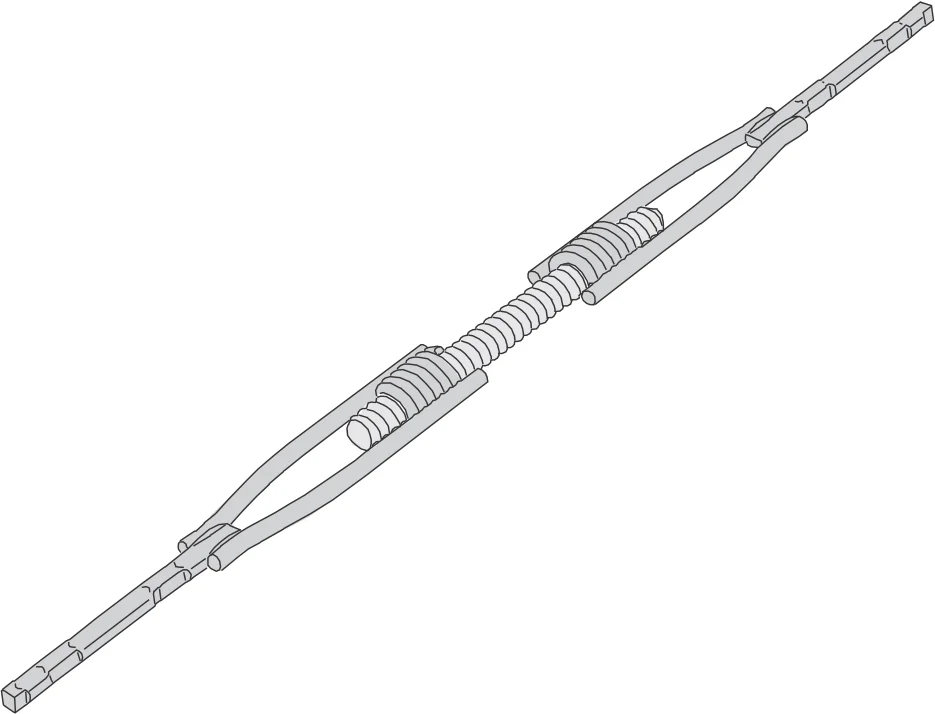

Use standard ½” coil rod and a pair of Resi-Coil™ Ties to create ties of any length with off-the-shelf components. Save time and set-up charges for custom-length ties.



Adjustable length.jpg

Since RC’s are manufactured in a tightly-controlled process, you are assured of an adjustable long tie that is as strong as a standard tie (2500lbs SWL). Don’t take chances on field-welded ties or other make-do measures.



IDEAL FOR:

  • Battered walls

  • Pilasters

  • Machine bases

  • Unusual forming situations

  • Emergencies

Always keep RC’s on hand for the security of having a tie of any length when you need it.



ONE-SIDED FORMING

One-sided forming made easy

Resi-Coil™ Ties and short lengths of ½” coil rod allow you to quickly anchor forming panels onto existing structures. Use drop-in anchors, epoxy, or rock anchors to attach to concrete, rock, or masonry walls. Other standard ½” coil rod hardware (Coil Lags™, plate washers and nuts, etc.) can be used to secure to sheet piling, plywood, or other materials.



The RC’s design simplifies the process of setting up forms for a one-sided wall. Since the tie is precisely in line with the coil rod, just drill holes at locations on the existing wall corresponding to tie locations on the forms.



Because they’re threaded onto the coil rod, RC’s are easy to adjust for wall thickness, or variations in the existing wall, by simply rotating (which may be done while the tie is placed in the form).




Resi-Coil Sizes


RC-6

Resi-Coil™ Tie 6" minimum wall

Most universal and cost effective Resi-Coil™ Tie by Steel Dog. Offers most adjustment range and a minimum wall thickness of 6"







RC-4

Resi-Coil™ Tie 4" minimum wall

The RC-4 is perfect for thin walls between 4" and 6".  The short coil struts provide very little adjustment range, so for walls over 6" thick an RC-6 is recommended.
