Fiberglass Ties+Board Form

Board formed concrete is an increasingly popular look when pouring an exposed wall. It’s achieved by forming with rough sawn or dimensional lumber, leaving the grain and knotty features of the wood as impressions in the concrete. Its an outstanding natural looking wall.

Fiberglass ties are ideal for board form work — they blend in and will never rust, which means NO STAINING, and because the ties are ground flush with the wall there is NO PATCHING.


If you own or rent steel-ply panels, pouring a board form wall with fiberglass ties is incredibly easy. See below for a step by step guide.



Application Guide

INSTALLATION

1.) Fasten boards to formwork

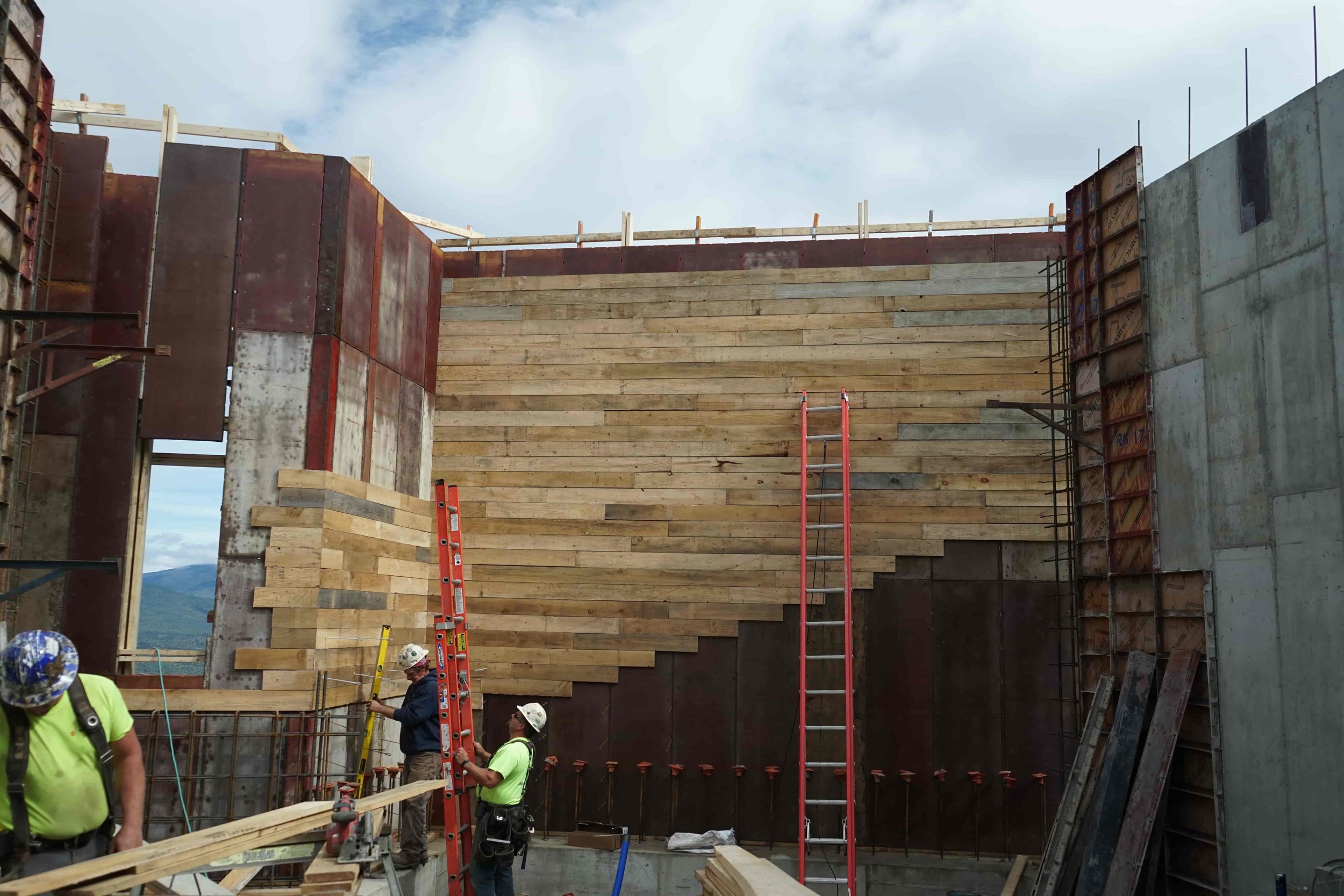

Set up one side of formwork (the one where the board form will be attached) and nail boards to wall.

Nailing board form to steel ply

2.) Drill slots

Drill or route slots in at the intended tie locations. Slots should be 5/16” wide and 7/8” tall to allow the loop to comfortably slide through.



3.) Feed ties through

Pass ties through slots and wedge bolt in place.


4.) Stage second side

Stage the other side of your formwork.



5.) Spay with form release

Spray boards and forms using a high quality, reactive form release.

6.) Pour concrete

Pour and vibrate the wall based on recommended pour rate for a 3000 lb, heavy duty loop tie.



STRIPPING

Cut the tie back

After stripping the panels and pulling the boards off the wall you will be left with the loop end of the tie sticking out. Grind or cut the tie flush using either an angle grinder with a diamond cutter or an oscillating multi-tool.

Grinding Tie.JPG


Additional resources:

PDF spec sheet
