An Easy Way to Add Inches to Your Forms

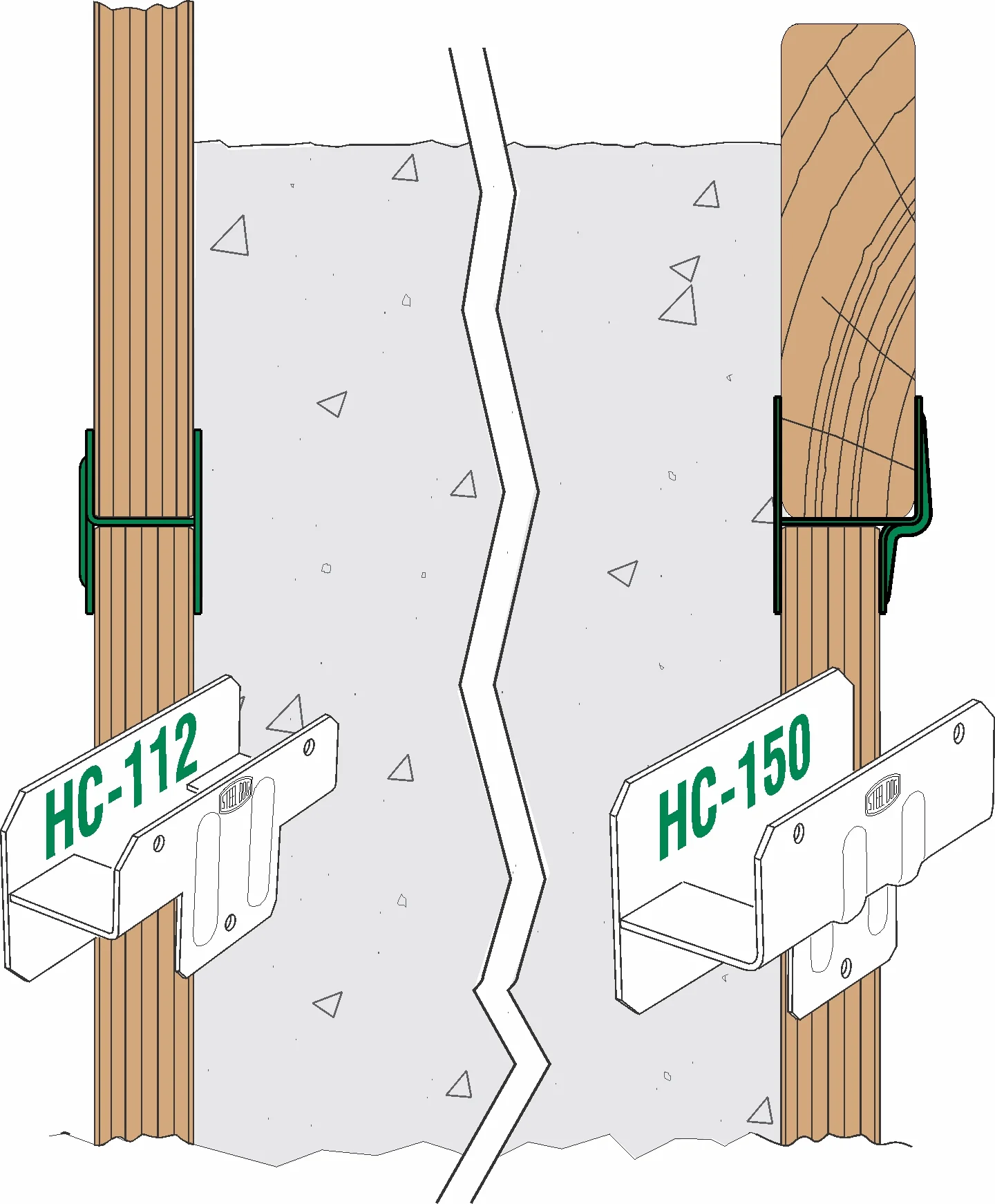

The Panel Clip and the Stacking Clip are thin, strong, steel clips for joining 1-1/8” plywood panels to other 1-1/8” stock (HC-112) or to 1-1/2” lumber (HC-150.) Either clip gives you a quick, inexpensive way to pour a slightly higher wall with your existing form panels.

112 and 150 Drawing.jpg


Stacking Clips and Stacking Spreaders Drawing.jpg




Other Uses

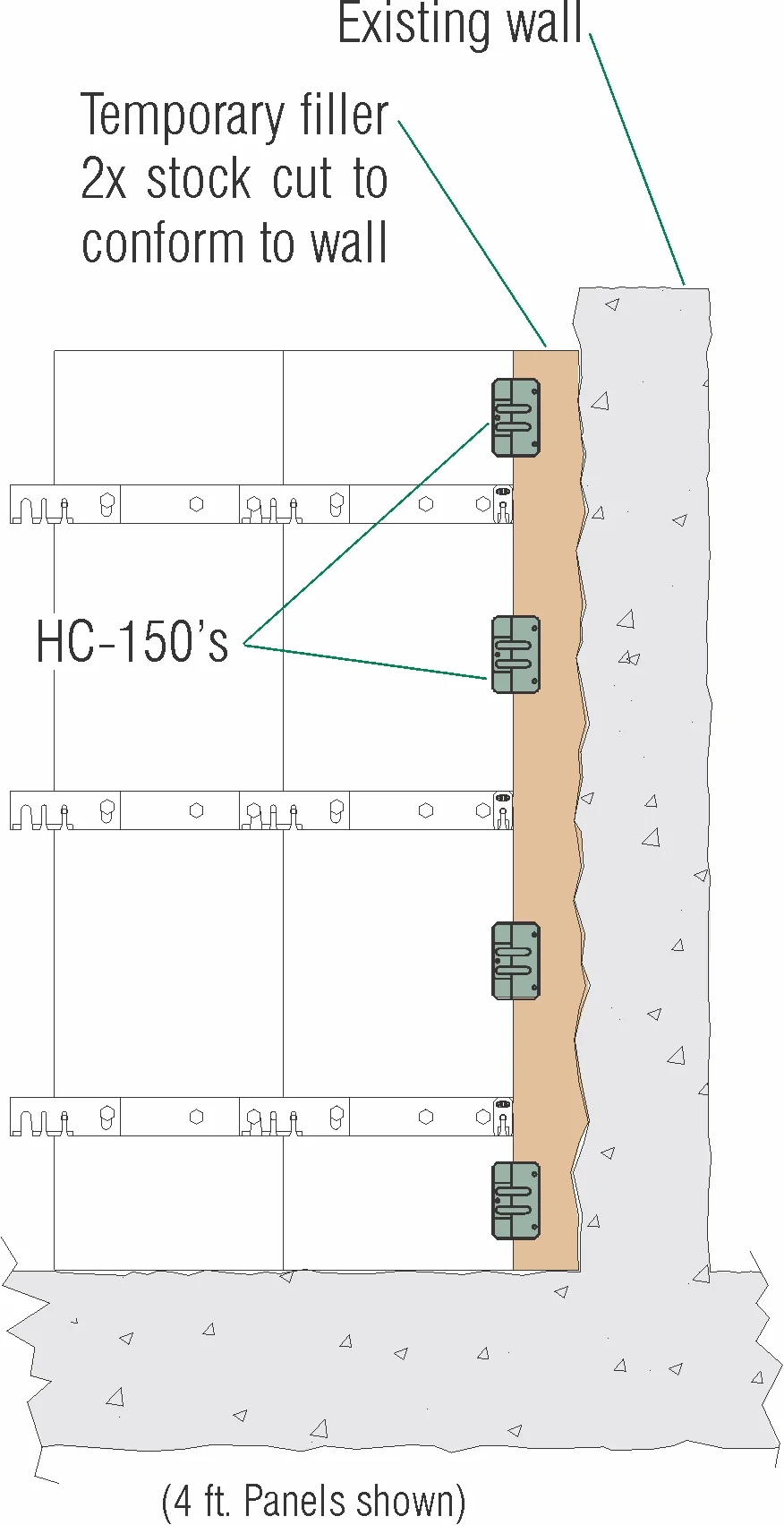

Stacking Clips can be used to make temporary filler panels on the spot from 1-1/2” lumber (or use HC-112’s and 1-1/8” plywood.) As shown on the right, joining up to an existing wall sometimes requires a scribed board to match an uneven surface. Use HC’s to join a 2x4 or 2x6 to the first form panels. Cut board to match adjoining surface.

Also use the same technique to make panel-to-panel fillers in the middle of a wall to get exactly the width you want, or to cut for wall pass-throughs.

ALWAYS BE SURE TO ADEQUATELY WALER OR BRACE FILLERS AGAINST THE FORCE OF THE POUR.

Temporary Filler Drawing.jpg
