Curved Wall Clips

Curved Wall Clips

$0.00

Hinged clips connect panels at shallow angles

Steel Dog® Curved Wall Clips are a quick way to connect standard 1-1/8” filler panels together to form curved walls. By adjusting the widths of inner and outer filler panels (to keep opposing panel joints roughly aligned) curved walls of any radius, down to approximately 3ft, are possible.

Product Code:
Quantity:
Add To Cart

The clips are manufactured in pairs: one for the outside (or convex) forms, and one for the inside (or concave) forms. Each clip engages two ties, one on each side of the joint.

APPLICATIONS:

  • Retaining walls

  • Foundation walls with curved architectural sections

  • Tanks

  • Manure pits and other agricultural structures

MATERIAL:

Through-hardened, medium carbon steel

FINISH:

Clear zinc chromate (outer clip) or yellow zinc chromate (inner clip).

CWC Sketchup.jpg

ORDERING INFO


CWC Order Info.jpg

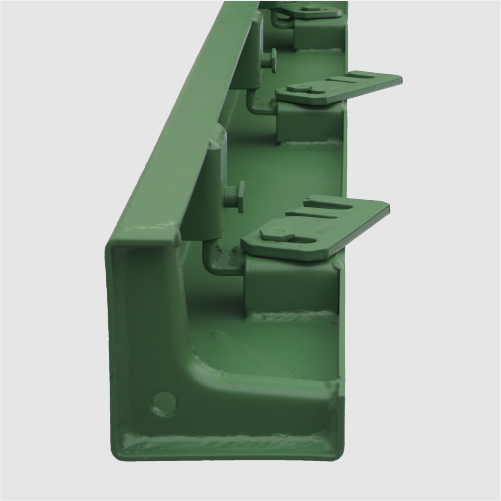

4"x6" Inside Corner Corner 6x4.png
