Standard length and custom length form ties for handset systems

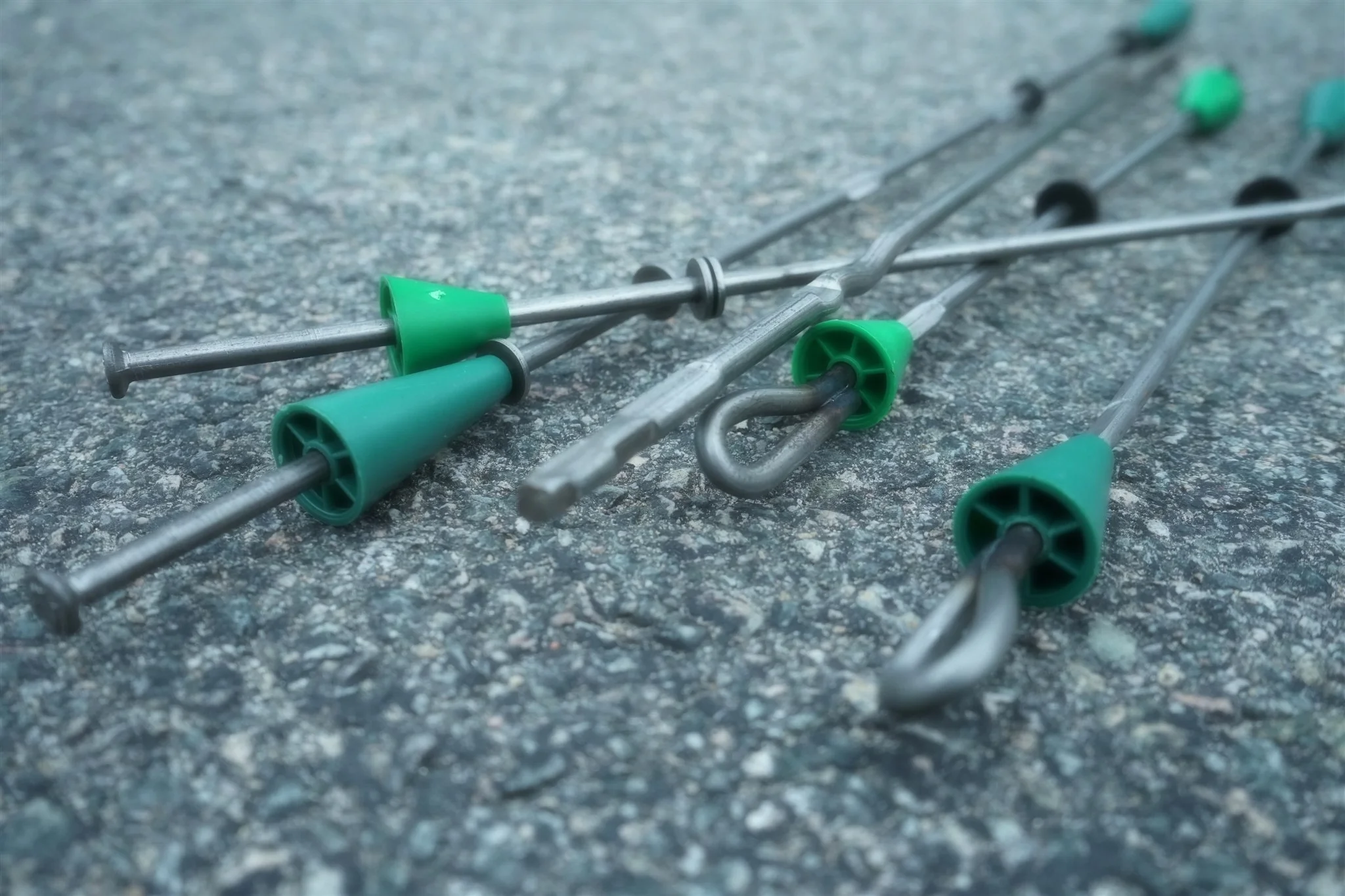

Cluster of Ties.JPG


Loop Ties


Heavy Duty Loop ties carry a safe working load of 3000 lbs with optional cones and waterseal. We can make loop ties to meet any specification. Virtually any configuration of length, breakback depth, or end arrangement is possible



Safe Working Load:

3000lbs, 2-to-1 safety factor



Wall Thickness Range:

4 inches to 50 feet, in any fraction to a 1/16th"



Wire Material:

Carbon steel, 304 stainless



Cone Lengths Available:

1", 1-1/2," 2"

Loop Ties Top-03.png
Loop Ties Bottom-03.png

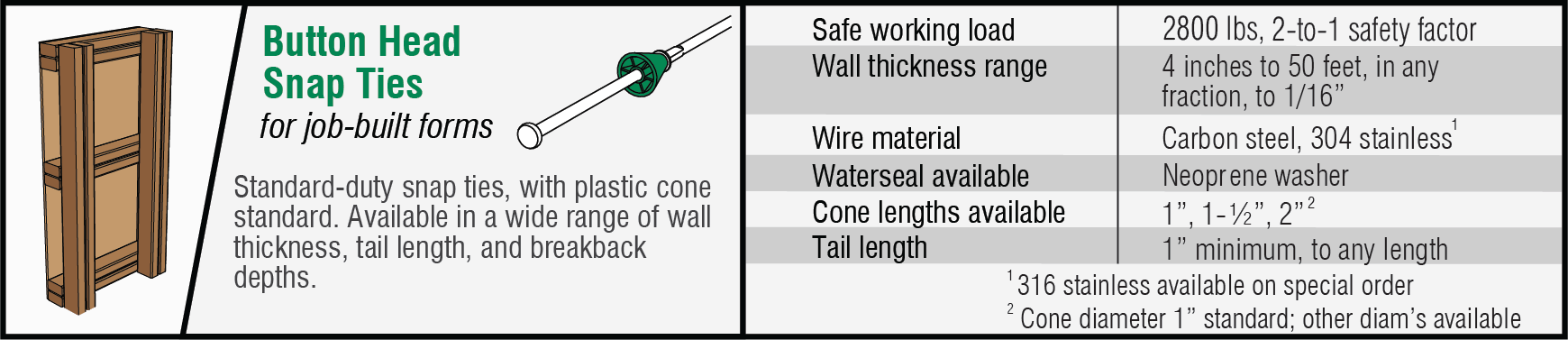

Snap Ties


Snap Ties Top-03.png
Snap Tie Box Bottom.jpg

Standard-duty snap ties with plastic cones standard. We can make snap ties in a wide range of wall thicknesses, tail lengths, and breakback depths.



Safe Working Load:

2800lbs, 2-to-1 safety factor



Wall Thickness Range:

4 inches to 50 feet, in any fraction to a 1/16th"



Wire Material:

Carbon steel, 304 stainless



Cone Lengths Available:

1", 1-1/2," 2"



Tail Length Available:

1" minimum, to any length


grey bakcground.jpg


Combo Ties


Combo Ties Top-03.png
Combo Ties.png

Combo ties can be used to transition between Steel Ply an Job-built forming.  One side is offered as a loop tie and the opposing end is a button head snap tie.



Safe Working Load:

2800lbs, 2-to-1 safety factor



Wall Thickness Range:

4 inches to 50 feet, in any fraction to a 1/16th"



Wire Material:

Carbon steel, 304 stainless



Cone Lengths Available:

1", 1-1/2," 2"



Tail Width Available:

1" minimum, to any length

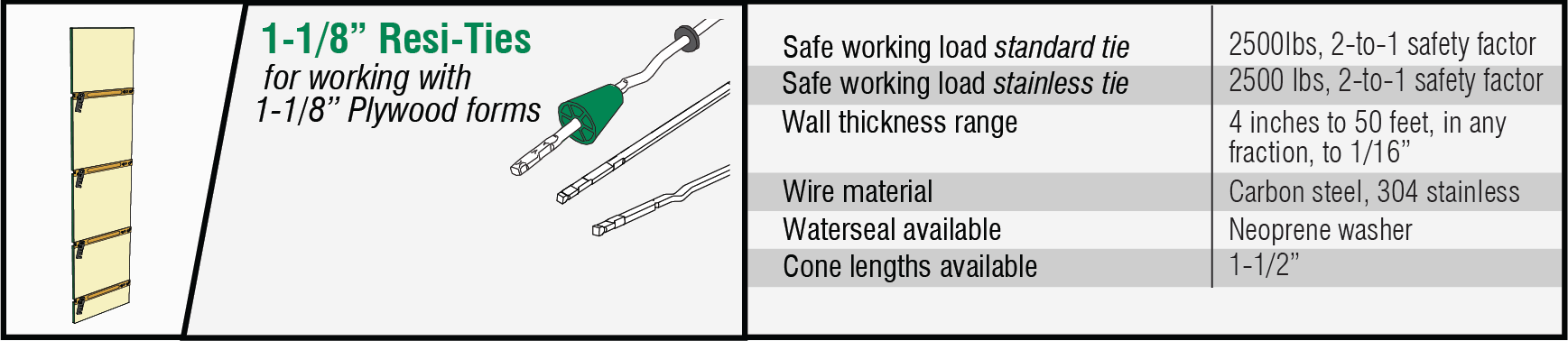

1-1/8” Form Ties


Resi Ties-03.png
Resi Ties Bottom-03.png

Steel Dog 1-1/8” Form Ties are sold by the box for standard sizes and can be custom ordered any size. The V-Notch inner breakback provides effortless removal with a single hammer blow. Deep Breakback Resi ties are also available with and without cones.



Safe Working Load:

2500lbs, 2-to-1 safety factor



Wall Thickness Range:

6 inches to 50 feet, in any fraction to a 1/16th"



Wire Material:

AISI C1038 carbon steel, 304 stainless



Cone Lengths Available:

1-1/2
