Steel Dog® Field Ties™ are the fastest, most cost effective way to make up long ties. A pair of Field Ties™ coupled with a length of #3 rebar or pencil rod can be assembled in seconds, NO expensive freight, NO lead time.

FEATURES:

• Accepts #3 rebar, pencil rod, and other steeltie rods

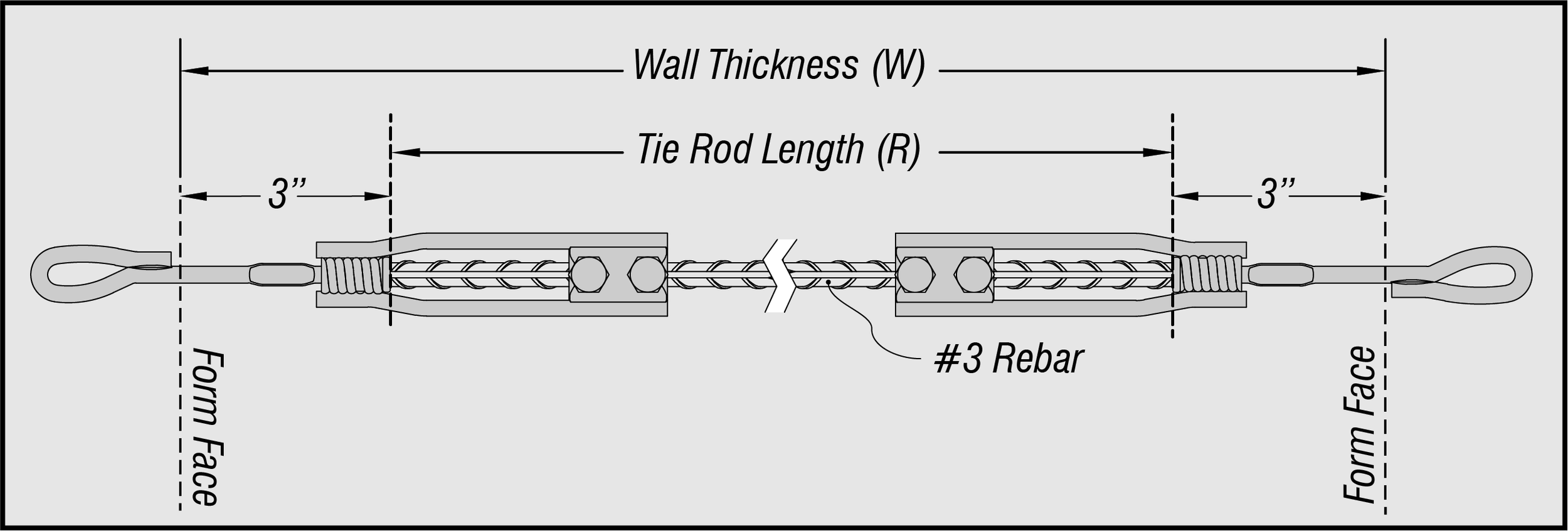

• Integrated 3in “stop” allows for easy and quick measurement and assembly of ties

• Available for most handset form ties

• Break-off torque bolts ensure a quick,reliable connection to tie rod.

MATERIALS:

Carbon Steel, stainless steel, some versions available with fiberglass tie ends

SAFE WORKING LOAD:

#3 Rebar: 2250 LBS (2-1 Safety factor)

Pencil Rod: 1500 LBS (2-1 Safety factor)

AVAILABLE FORM SYSTEMS:

Field Ties™ are available for most handset form systems: Steel-Frame (loop tie and base tie), Aluminum, 1-1/8” Resi-Forms, Gates Cam-Lock, Job Built.
