One-Sided Forming

Cam-Lock Loop-Coil Tie™

Green Line.jpg




The Steel Dog® Cam-Lock Loop-Coil™ Tie is a multipurpose Transition Tie™ . With loop tie end and self centering cone, electronically welded to a two-strut, ½”coil tie end, the Cam-Lock Loop-Coil™ Tie allows the user to take advantage of the versatility of threaded coil rod for one-sided forming, long ties, and other purposes when using Gates Cam-Lock forms and hardware.


MATERIAL:

Loop tie end and wire struts: AISI C1038 carbon steel.

FINISH:

None

MAXIMUM SAFE WORKING LOAD:

2250 Lbs. (Based on approximately 2-to-1 safety factor).

INSTALLATION:

  • ½”coil rod must be threaded completely through coil and extend at least ¼” past coil

  • Do not bend any portion of tie. Bent or damaged ties will fail at less than rated load: do not use

Green Line.jpg

Applications

GC Custom Length.jpg

ADJUSTABLE LENGTH TIES

Cam-Lock Loop-Coil™ Ties allow you to make adjustable-length ties from off-the-shelf components. thread two back-to-back onto a length of standard ½”coil rod for adjustable-length ties for 8” walls and up.

TYPICAL APPLICATIONS

• Battered walls • Mass pours • Pile caps • Pilasters

GC Existing Wall.jpg

EXISTING WALL

Cam-Lock Loop-Coil™ Tie provide a simple and low-cost solution for securing formwork to existing structures for one-sided forming. They can eliminate additional hardware and labor over other methods.

GC Blind Side Wall.jpg

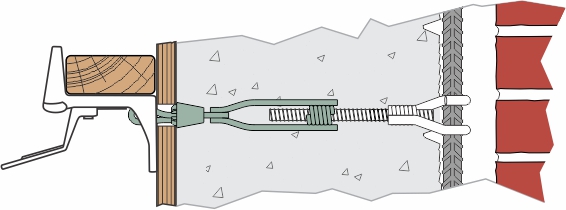

BLIND SIDE WALLS

A universal tie for Stay-Form walls

Steel Dog® Cam-Lock Loop-Coil™ Tie and Rebar Hooks provide a fast and low-cost way to use Stay-Form® stay-in-place expanded metal mesh to form blind side walls (where clearances on one side are too tight to allow for removal of reusable forms).

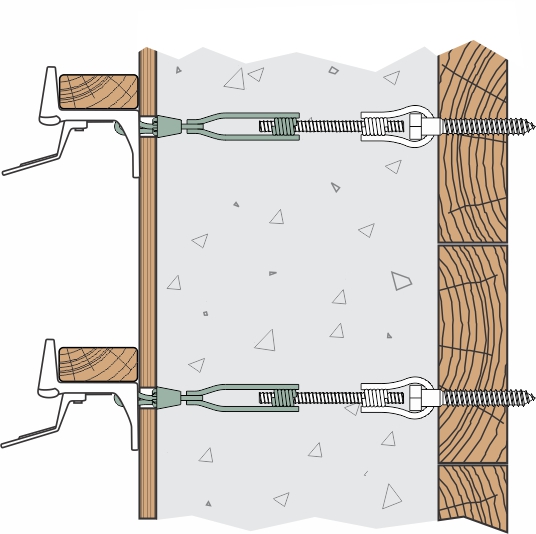

ANCHORING MEANS

Depending on the existing wall material and the design tie loads, the threaded rod may be secured with:

GC Anchoring Means.jpg
Green Line.jpg

Ordering Info


GC Order Info.jpg
