The Steel Dog® Cam-Lock Loop-Coil™ Tie is a multipurpose Transition Tie™ . With a loop tie end and self centering cone, electronically welded to a two-strut, ½”coil tie end, the Cam-Lock Loop-Coil™ Tie allows the user to take advantage of the versatility of threaded coil rod for one-sided forming, long ties, and other purposes when using Gates Cam-Lock forms and hardware

Add To Cart

PDF Spec Sheet

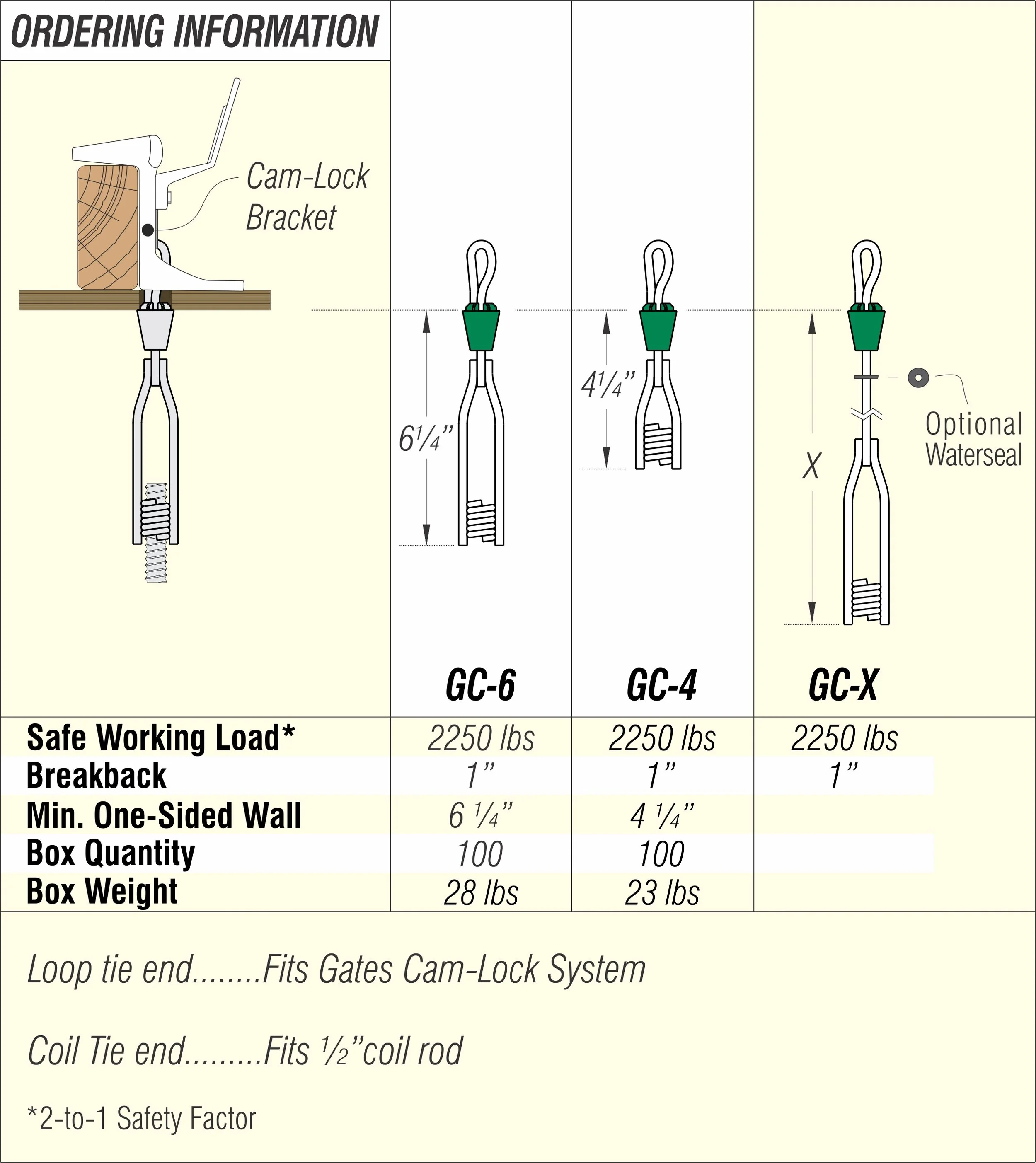

MATERIAL:

Loop tie end and wire struts: AISI C1038 carbon steel.

FINISH:

None

MAXIMUM SAFE WORKING LOAD:

2250 Lbs. (Based on approximately 2-to-1 safety factor).

INSTALLATION:

½”coil rod must be threaded completely through coil and extend at least ¼” past coil
Do not bend any portion of tie. Bent or damaged ties will fail at less than rated load: do not use

Applications

ADJUSTABLE LENGTH TIES

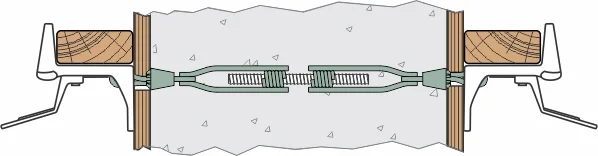

Cam-Lock Loop-Coil™ Ties allow you to make adjustable-length ties from off-the-shelf components. thread two back-to-back onto a length of standard ½”coil rod for adjustable-length ties for 8” walls and up.

TYPICAL APPLICATIONS

• Battered walls • Mass pours • Pile caps • Pilasters

EXISTING WALL

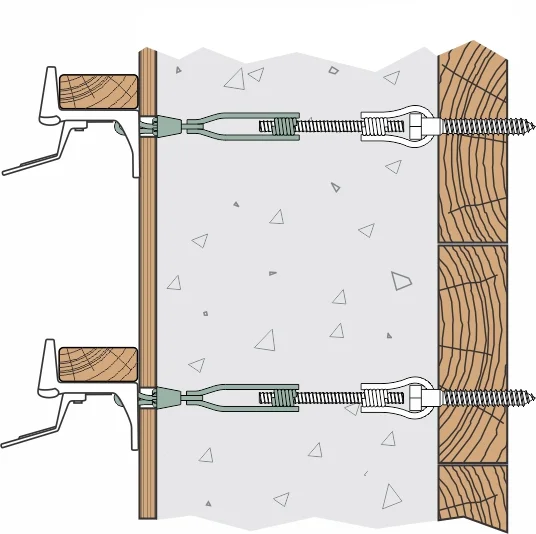

Cam-Lock Loop-Coil™ Tie provide a simple and low-cost solution for securing formwork to existing structures for one-sided forming. They can eliminate additional hardware and labor over other methods.

BLIND SIDE WALLS

A universal tie for Stay-Form walls

Steel Dog® Cam-Lock Loop-Coil™ Tie and Rebar Hooks provide a fast and low-cost way to use Stay-Form® stay-in-place expanded metal mesh to form blind side walls (where clearances on one side are too tight to allow for removal of reusable forms).
