Rebar Hooks

Green Line.jpg



Steel Dog® Rebar Hooks are a low-cost, fast means of connecting threaded rod at right angles anywhere along the length of rebar for a variety of purposes. The unique arrangement of two opposing hooks makes it easy to make a field connection to rebar with limited clearance.



RH on rebar.jpg

FEATURES:

  • Unique “opposed hook” design provides secure attachment in limited space

  • Hook held in position by the connecting threaded rod. NO SEPARATE NUTS OR OTHER FASTENERS REQUIRED.

  • Different hooks for four standard threaded rod types

  • Attach to up to #8 rebar (for larger sizes, see Rebar Coil Clamp)

MATERIAL:

Carbon steel. Some sizes available in stainless steel by special order.

FINISH:

None. Electroplated zinc, galvanized, and epoxy finishes available: consult factory.

APPLICATIONS:

  • Stay-Form blind side wall ties

  • Tying low edge forms to rebar mats for slab pours

  • Tying bottoms of forms into vertical mudslab rebar

  • Self-supporting insert for shotcrete walls


Installation

Installation 1.jpg

1. Push Onto Rebar


Installation 2.jpg

2. Twist Hook


Installation 3.jpg

3. Tighten Coil Rod





Rebar Hook Variations:

We offer a variety of Rebar Hooks with different coil sizes and different hook sizes.  We also offer most Rebar Hooks in stainless steel or the option of zinc or galvanized coatings.


RH-48

Rebar Hook ½” Coil

1/2" Coil rod to #8 or smaller rebar


RH-8

Rebar Hook 3/4" Coil

3/4" coil rod to #8 or smaller rebar


RH-8D

Rebar Hook 15mm threadbar

15mm threadbar to #8 or smaller rebar

Other sizes available. Consult factory.

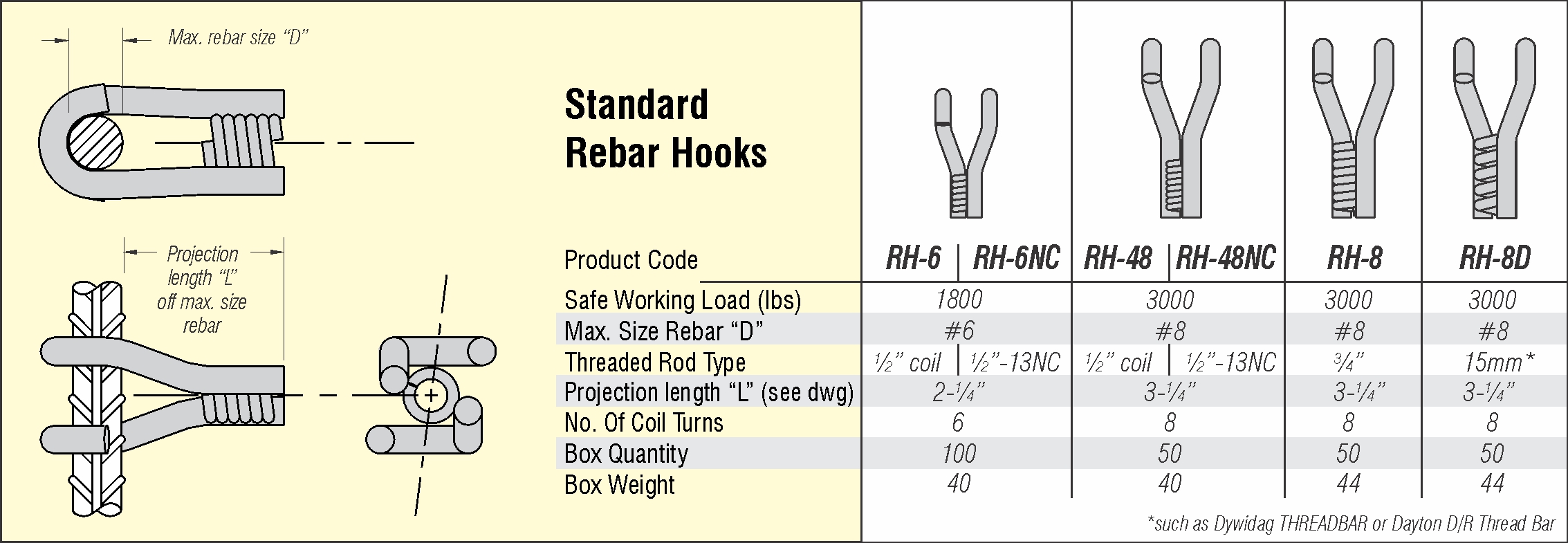

Ordering Info


RH Ordering Info .jpg
