AnchorBar™

AnchorBar™

$0.00

AB-4

The Steel Dog® AnchorBar™ is a versatile solution for attaching formwork to existing structures.

Use the fastener or mechanical anchor of your choice (up to 5/8” diameter) to connect formwork to existing structures, whether wood, concrete, or steel. Or, weld the body of the AnchorBar to steel structures (sheet piling, H-beams) for an inexpensive weld-on tie point with swivel coil loop.

Available in various sizes for:

  • 1/2” coil rod

  • 3/4” coil rod

  • 15mm (5/8”) euro rod

  • 20mm euro rod

Add To Cart

2D Graphic.jpg

APPLICATIONS:

  • Brace ties for edge forms on mass pours

  • One-sided walls against sheet piling

  • One-sided walls against irregular surfaces

  • Many other uses

USE WITH THESE FASTENERS:

  • Simpson Titen HD® Screw Anchor

  • Powers Wedge-Bolt®

  • Drop-in Anchor (with NC or coil thread rod and nut)

  • Powers Power-Stud®

  • Any fastener up to 5/8” diameter

MATERIAL:

Body: low carbon steel
Coil loop: medium carbon steel

FINISH:

Plain. Other finishes available: contact factory.


Additional Information

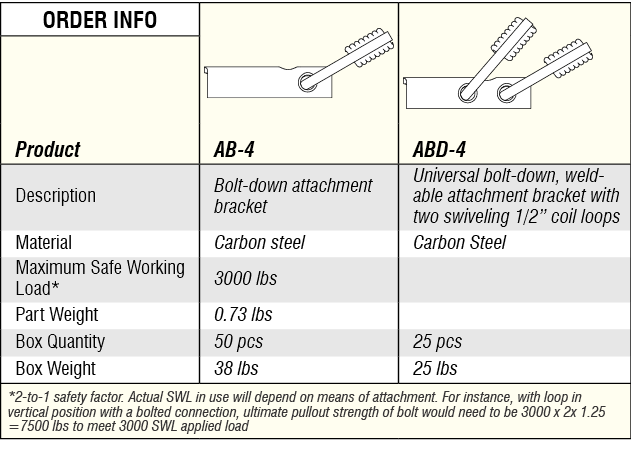

Ordering Info
