One-Sided Forming

Turnbuckle Loop-Coil Tie™

Green Line.jpg



Steel Dog® Turnbuckle Loop-Coil Ties™ provide a first in the concrete forming industry: a way to adjust the length of a tie after it is in place and attached to the formwork. Like the industry-standard LC Loop-Coil Ties, LCT Turnbuckle ties provide a convenient connection between Steel Ply formwork and 1/2” coil rod, for one-sided forming, adjustable-length ties, blind-side forming, etc.

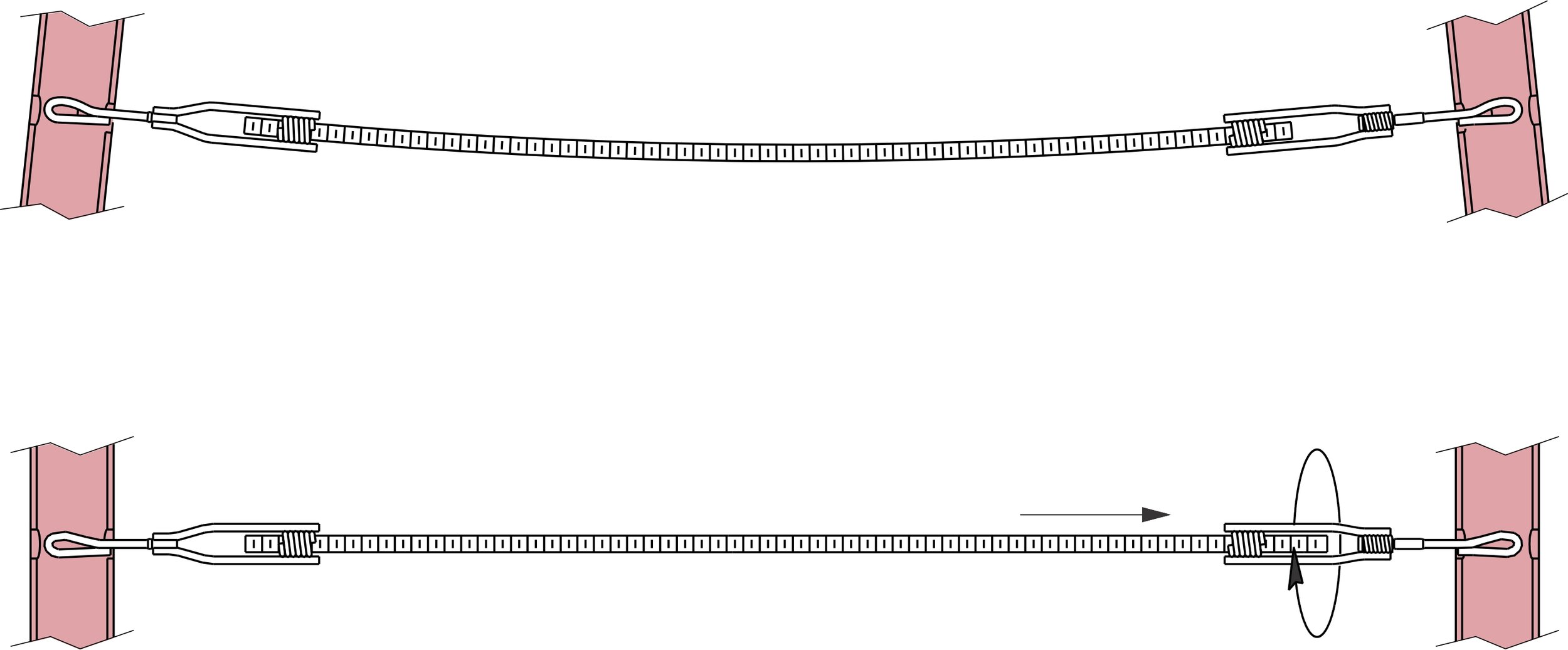

Tilting forms.jpg

FEATURES:

  • Threads onto standard ½”coil rod

  • Special swivel design allows for infinitely fine
    adjustment of tie length–while loop end is wedge-bolted
    in place on forms

  • Heavy-duty loop tie load rating

MATERIAL:

Carbon steel. Stainless steel loop tie end
available.

FINISH:

None. Electroplated zinc finish available

MAXIMUM SAFE WORKING LOAD:

2800 Lbs. (2-
to-1 safety factor)




Applications

Existing wall.jpg

ONE-SIDED FORMING

EXISTING WALL

Turnbuckle Loop-Coil™ Ties provide a simple and low-cost solution for securing formwork to existing structures for one-sided forming. They can eliminate additional hardware and labor over other methods.



Typical Existing Walls • Concrete • Wood Lagging • Brick •Sheet piling • Hollow concrete block • Rock

Wood lagging.jpg

ANCHORING MEANS
Depending on the existing wall material and the design tie loads, the threaded rod may be secured with:


BLIND SIDE WALLS

Steel Dog® Turnbuckle Loop-Coil™ Ties and Rebar Hooks provide a fast and low-cost way to use Stay-Form® stay-in-place expanded metal mesh to form blind side walls (where clearances on one side are too tight to allow for removal of reusable forms).


Anchor Bar.jpg

BRACING INSIDE WALLS

Factory bent LCT-7's can be used to shore up formwork from inside the wall when used with an AnchorBar™ (AB-4).



The turnbuckle feature is almost essential for bent end ties, as they can easily be adjusted after being installed.  Post setup adjustment with a "fixed" loop coil tie would require disassembly of the forms.
